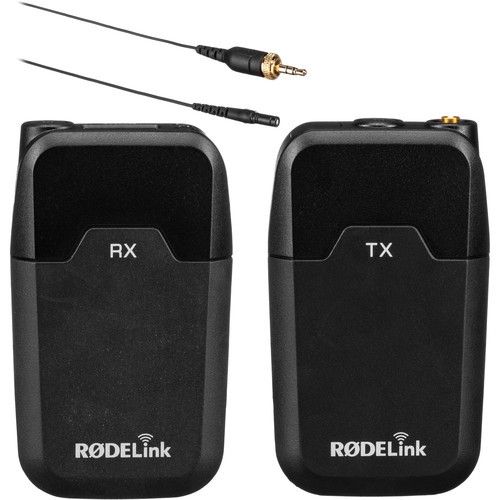

Rode RODELink Filmmaker Kit Digital Camera-Mount Wireless Omni Lavalier Microphone System (2.4 GHz)

#532H48290  PC #RODLNK-FM
In Stock
Key Features
  • Plug & Record Kit for DIY Videographer
  • Omnidirectional Lav Microphone
  • Bodypack Transmitter

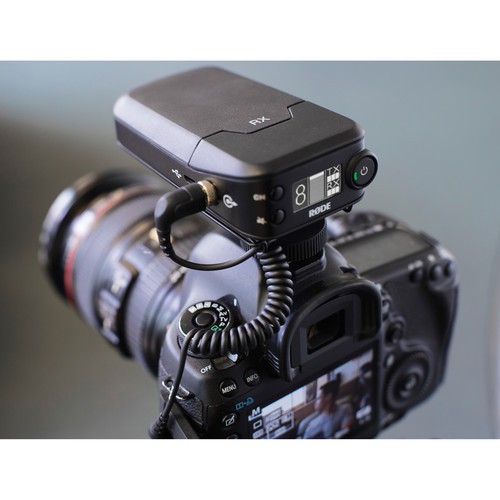

  • Diversity Camera-Mount Receiver
  • Protected Peer-to-Peer Connection
  • Easy to Use, Flexible Operation
  • 30-Hr AA Batteries + USB Power
  • Up to 8 Mics on Set / 330' Range
USD 199.00
USD 399.00
Color

Specifications

System

Wireless Technology Digital 2.4 GHz
Included Transmitters 1 x Bodypack with Microphone
Diversity Frequency
Max Operating Range 330' / 100.6 m (Line of Sight)
Max Transmitters per Band 8
Sample Rate/Resolution 44.1 kHz / 24-Bit
Latency 4 ms (Maximum)
Dynamic Range 112 dB
Encryption 128-Bit

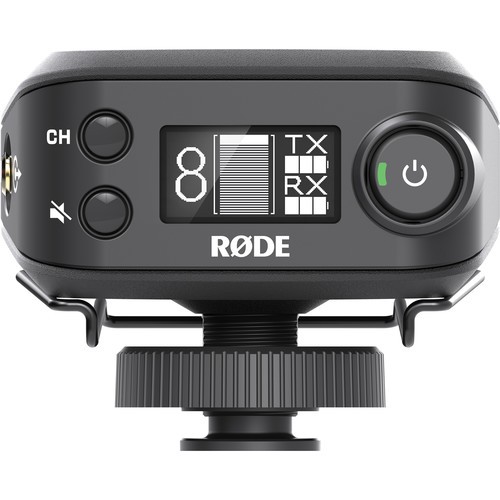

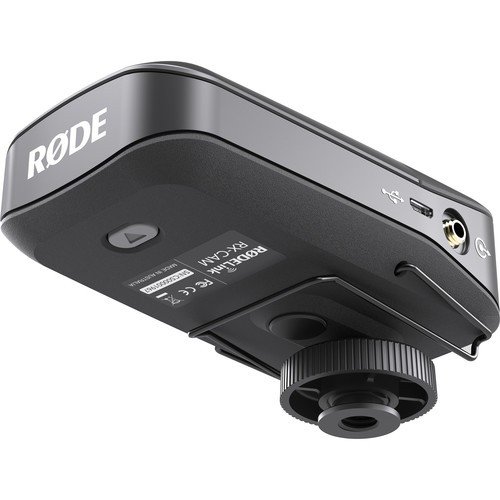

Receiver

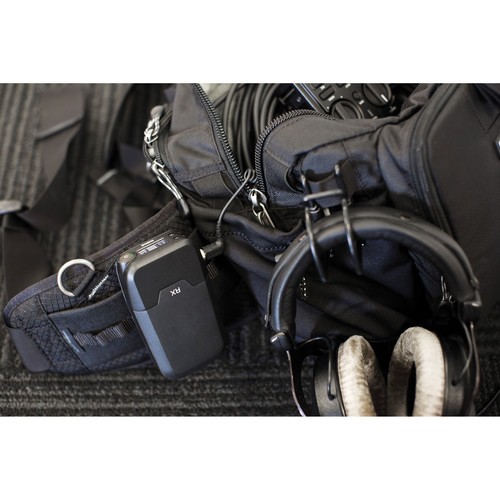

Receiver Type Camera-Mount (Bag Suitable)
Mounting Options Belt Clip, Shoe-Mount (with Included Hardware)
Antenna Internal
Number of Audio Channels 1
Audio I/O 1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
Audio Output Level 0 dBV (Max)
Frequency Response 35 Hz to 22 kHz
USB/Lightning Connectivity 1 x Micro-USB (Bus Power)
Impedance 1/8" / 3.5 mm Output:
300 Ohms (Unbalanced)
Power Requirements Battery, Bus Power (USB)
Battery Type 2 x AA (Not Included)
Approx. Battery Life 30 Hours (Alkaline)
Display & Indicators 1 x OLED (Battery Status, Channel, Mute, Peak)
Housing Plastic
Dimensions 2.6 x 4.4 x 2" / 65 x 111 x 52 mm
Weight 6.7 oz / 190 g

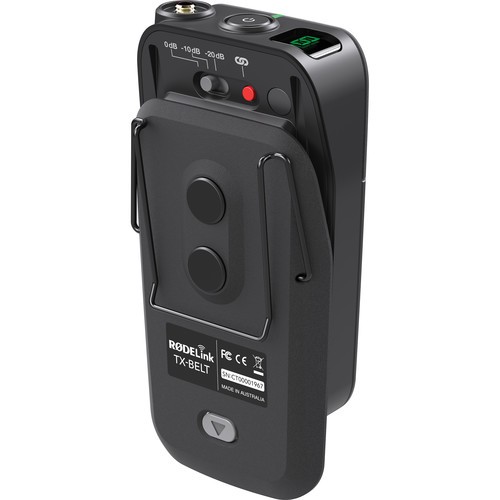

Transmitter

Transmitter Type Bodypack
RF Output Power Not Specified by Manufacturer
Audio I/O 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
Plug-In Power 4 V
Pad None
Muting Programmable Mute Switch
Audio Input Level 1 V RMS (Max)
Signal Processing None
Frequency Response 35 Hz to 22 kHz
Antenna 1 x Internal
Power Requirements Battery, Bus Power (USB)

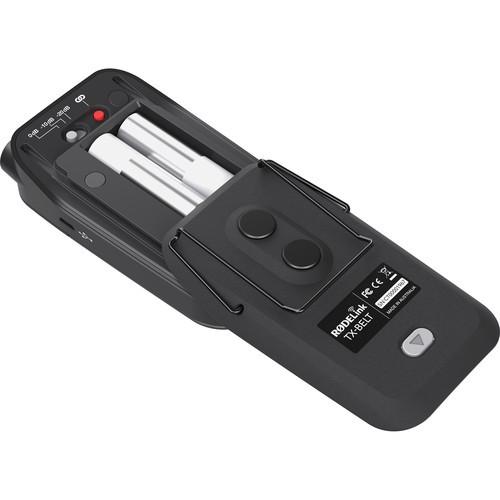

Battery Type 2 x AA (Not Included)
Approx. Battery Life 30 Hours (Alkaline)
USB/Lightning Connectivity 1 x Micro-USB (Bus Power)
Display & Indicators 1 x LED (Battery Status, Mute)
Housing Plastic
Dimensions 2.6 x 4.4 x 1.6" / 65 x 111 x 40 mm
Weight 6.7 oz / 190 g

Microphone

Microphone Type Lavalier
Sound Field Mono
Capsule Electret Condenser
Diaphragm 0.10" / 2.54 mm
Polar Pattern Omnidirectional
Frequency Range 60 Hz to 18 kHz
Equivalent Noise Level 25 dB A-Weighted
Maximum SPL 110 dB SPL
Impedance 3 Kilohms
Sensitivity -33.5 dB at 1 kHz
Output Connectors 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
Length 0.47" / 12 mm
Diameter 0.18" / 4.5 mm
Weight 0.04 oz / 1 g

Packaging Info

Package Weight 1.25 lb
Box Dimensions (LxWxH) 7 x 5.2 x 5.05"
