Hollyland Mars 4K Wireless Video Transmission System

#6506I7469  PC #HOMARS4K
In Stock
Key Features

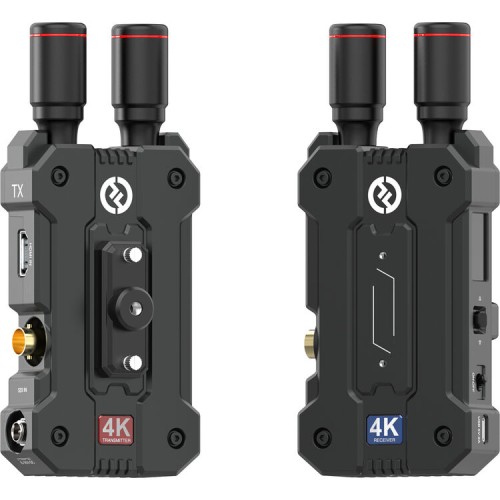

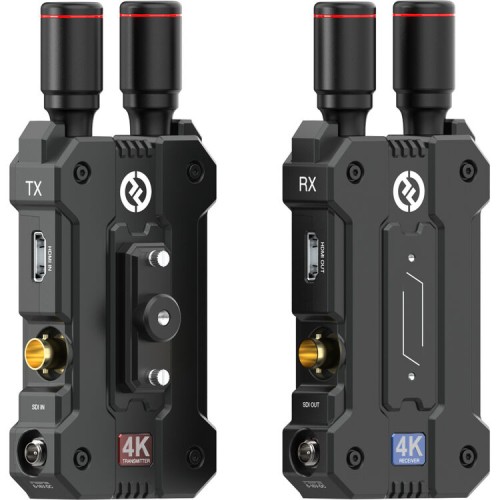

  • Transmitter and Receiver Set
  • Transmit up to UHD 4K30 Video up to 450'
  • SDI & HDMI Inputs & Outputs
  • L-Series Battery/USB Type-C/DC Power
  • Smart Channel Scanning, Touchscreen LCD
  • Low 0.06s Latency, 12 Mb/s Data Rate
  • DC, L-Series & USB Type-C Power Options
  • Transmits to up to 4 x Apps as Monitor
USD 400.00
Color

Specifications

Hollyland Mars 4K Specs

Information Video I/O
Transmitter: 1x HDMI 1.4b Input
Transmitter: 1x BNC (3G-SDI) Input
Receiver: 1x HDMI 1.4b Output
Receiver: 1x BNC (3G-SDI) Output
Show More
Embedded Audio
HDMI/SDI
Wireless
Wi-Fi
Latency
0.06 sec
Video Format
HDMI
UHD 4K: 30/25/24
1080p: 60/59.94/50/30/29.97/25/24/23.98
720p: 60/59.94/50
SDI
1080p: 60/59.94/30/29.97/24/23.98
720p: 60/59.94/50/30/29.97/25/24/23.98
Show More

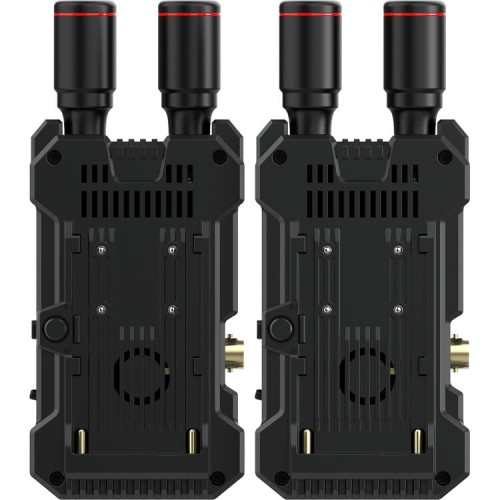

Battery
Transmitter/Receiver: Interchangeable Mount (No Plate Included)

Inputs/Outputs

Information Antenna I/O

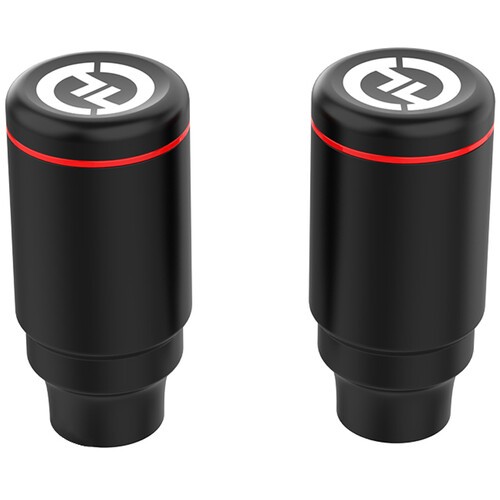

Transmitter/Receiver: 2x RP-SMA Female

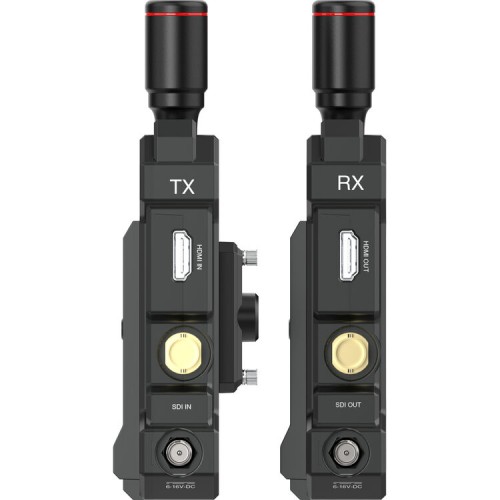

Video I/O
Transmitter: 1x HDMI 1.4b Input
Transmitter: 1x BNC (3G-SDI) Input
Receiver: 1x HDMI 1.4b Output
Receiver: 1x BNC (3G-SDI) Output
Embedded Audio
HDMI/SDI
Audio I/O
No
Power I/O

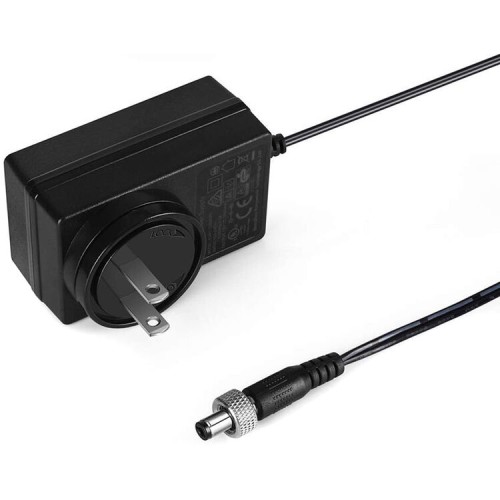

Transmitter/Receiver: 1x Coax Input
Transmitter/Receiver: 1x USB-C Input
Encryption
No

Format Support

Information Video Format
HDMI
UHD 4K: 30/25/24
1080p: 60/59.94/50/30/29.97/25/24/23.98
720p: 60/59.94/50
SDI
1080p: 60/59.94/30/29.97/24/23.98
720p: 60/59.94/50/30/29.97/25/24/23.98
Audio Format
Not Specified by Manufacturer
Timecode Support
Yes

General

Information Status Display
On Transmitter & Receiver
Environmental Resistance
No
Operating Conditions
14 to 140°F / -10 to 60°C
Storage Conditions
-40 to 140°F / -40 to 60°C
Dimensions
Transmitter/Receiver: 4.5 x 2.6 x 1.3" / 115 x 65 x 32 mm

Power

Information Input Power
6 to 16 VDC
Battery
Transmitter/Receiver: Interchangeable Mount (No Plate Included)

Mounting

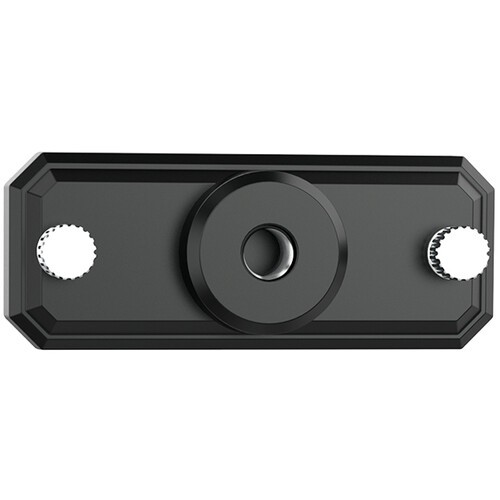

Information Tripod/Accessory Mounting
Transmitter/Receiver, Bottom
1x 1/4"-20 Female

Wireless

Information Wireless
Wi-Fi
Wireless Range
450' / 137.2 m (Line-of-Sight)
Channel Bandwidth
20 MHz
Frequency Range
US: 5.1 to 5.8 GHz
Latency
0.06 sec
RF Power
21 dBm
RF Sensitivity
-90 dBm
Wi-Fi
Wi-Fi 4 (802.11n): Dual-Band (2.4 & 5 GHz)
Bluetooth
No
Mobile App Compatible
Yes: Android & iOS
Cellular Support
No

Packaging Info

Information Package Weight
2.41 lb
Box Dimensions (LxWxH)
10.7 x 7.4 x 2.6"
