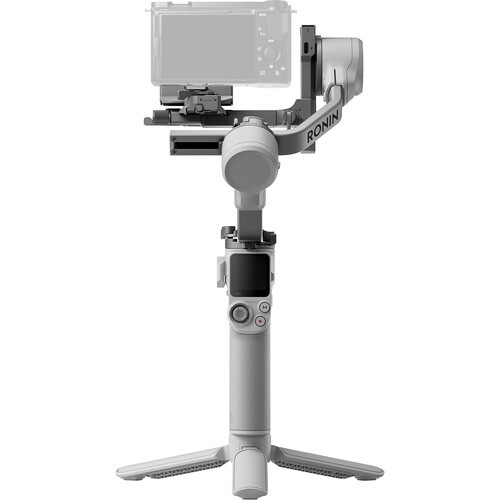

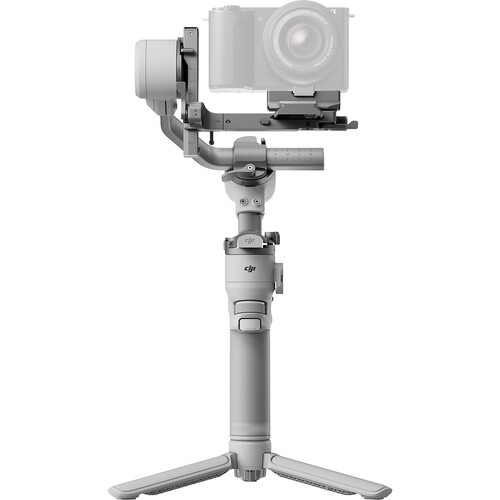

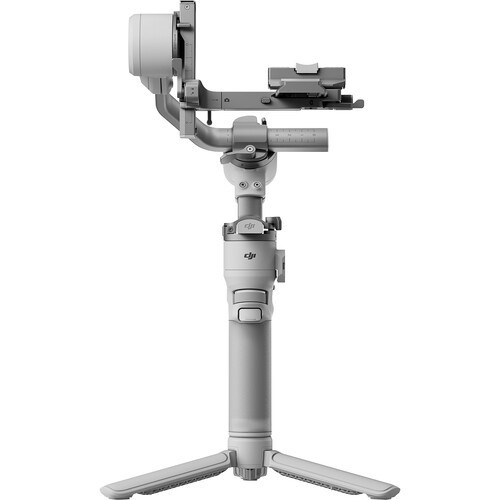

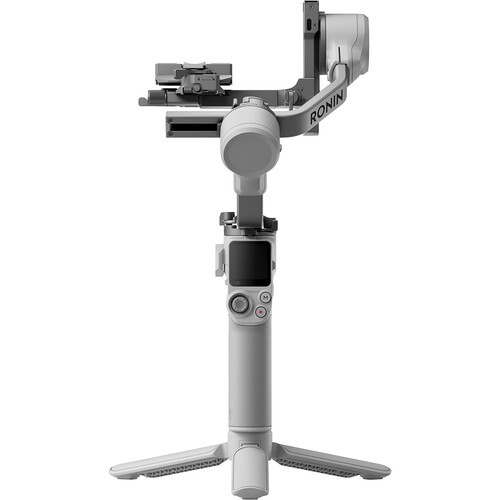

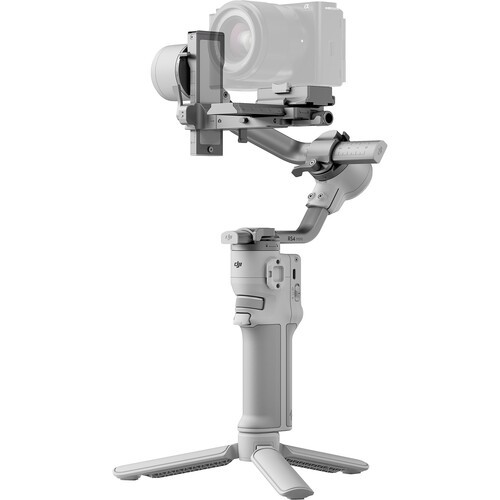

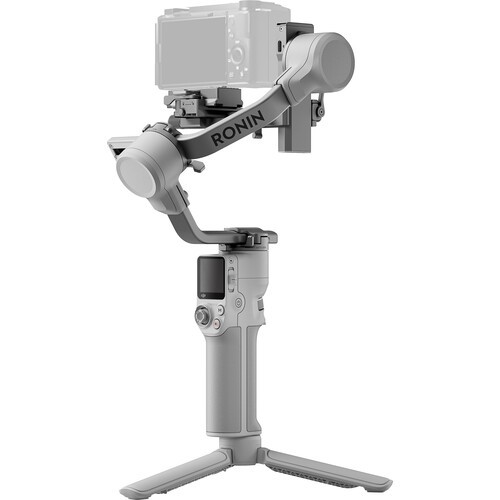

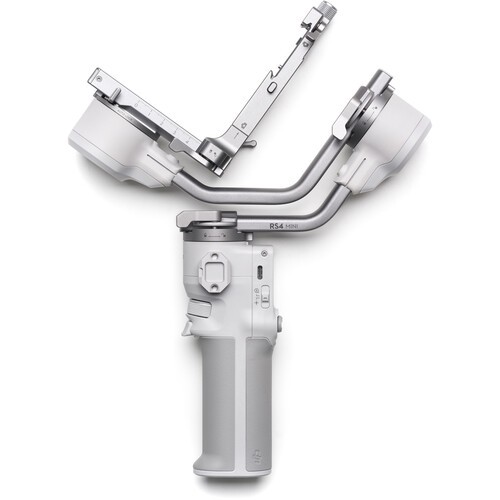

DJI RS 4 Mini Handheld Gimbal Stabilizer

#701869H68  PC #DJRS4M
In Stock
Key Features
  • For Mirrorless Cameras & Smartphones
  • Lightweight Design, up to 4.4 lb Payload
  • Camera Control via Bluetooth/USB-C
  • Works with Intelligent Tracking Module
  • Horizontal & Vertical Modes, 360° Axes
  • 3100mAh Battery, 13-Hour Runtime
  • Panorama, Time-Lapse, Tracking Functions
  • NATO Port for Handles & Accessories

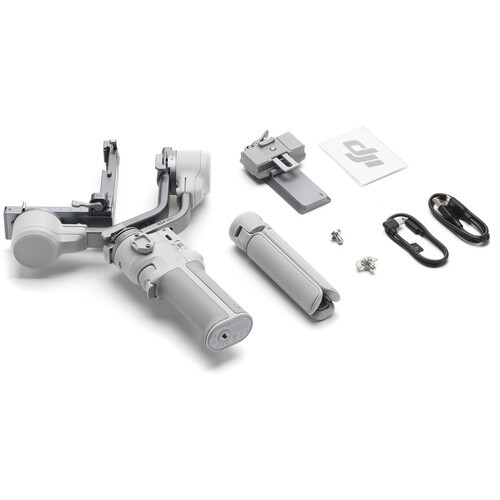

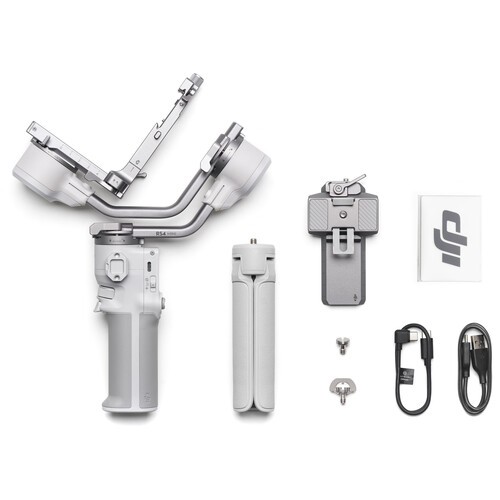

  • Includes Extended Grip/Tripod
MMK 1,399,000.00
Color

Specifications

Key Specs

Information Gimbal Design
Single Handgrip
Load Capacity
0.9 to 4.4 lb / 0.4 to 2 kg
Number of Axes
Three: Pitch (Tilt) / Roll / Yaw (Pan)
Camera Control
On Compatible Models
Mobile App Compatible
Yes: Android & iOS
App Name: RONIN
Display Type
Fixed Touchscreen OLED
Dimensions
13.3 x 7.2 x 6.9" / 338 x 182 x 175 mm (without Tripod)
12.4 x 9.3 x 2.5" / 316 x 236 x 64 mm (Folded)
Weight
2.0 lb / 890 g

Compatibility

Information Camera Control
On Compatible Models
Camera Mounting Screw
1x 1/4"-20 Male

Gimbal

Information Load Capacity
0.9 to 4.4 lb / 0.4 to 2 kg
Number of Axes
Three: Pitch (Tilt) / Roll / Yaw (Pan)
Rotation Range
Mechanical Range
Yaw (Pan): 360°
Roll: 320° (-110 to 210°)
Pitch (Tilt): 330° (-95 to 235°)
Follow Speed
Roll/Pan/Tilt: 360°/s

Connectivity

Information Inputs/Outputs
1x USB-C (2.5 A 9 VDC Power)
1x USB-C (Control)
1x Proprietary
Wireless
Bluetooth 5.1
*Built-In
Mobile App Compatible
Yes: Android & iOS
App Name: RONIN

Power

Information Operating Voltage
7.2 VDC

Battery

Information Battery Type
Built-In (3100 mAh)
Battery Runtime
13 Hours
Battery Charging Time
2 Hours

Packaging Info

Information Package Weight
3.095 lb
Box Dimensions (LxWxH)
13.1 x 11.7 x 2.8"

General

Information Display Type
Fixed Touchscreen OLED
Operating Conditions
14 to 113°F / -10 to 45°C
Materials
Aluminum Alloy
Accessory Mounting
1 x 1/4"-20 Female
1 x NATO Rail
Dimensions
13.3 x 7.2 x 6.9" / 338 x 182 x 175 mm (without Tripod)
12.4 x 9.3 x 2.5" / 316 x 236 x 64 mm (Folded)
Weight
2.0 lb / 890 g
