Canon EOS R5 Mirrorless Camera

#3978461V9  PC #CAER5
In Stock
Key Features
  • Key Features
  • 45MP Full-Frame CMOS Sensor
  • DIGIC X Image Processor
  • 8K30 Raw and 4K120 10-Bit Internal Video
  • Sensor-Shift 5-Axis Image Stabilization
  • 12 fps Mech. Shutter, 20 fps E. Shutter
  • Dual Pixel CMOS AF II with 1053 Points
  • 0.5" 5.76m-Dot OLED EVF
  • 3.2" Vari-Angle Touchscreen LCD
  • Subject Tracking with Deep Learning
  • CFexpress & SD UHS-II Memory Card Slots
Color
Style

Specifications

Imaging

Lens Mount Canon RF
Sensor Resolution Actual: 47.1 Megapixel
Effective: 45 Megapixel (8192 x 5464)
Sensor Type 36 x 24 mm (Full-Frame) CMOS
Image Stabilization Sensor-Shift, 5-Axis
Built-In ND Filter None
Capture Type Stills & Video

Exposure Control

Shutter Type Electronic Shutter, Mechanical Focal Plane Shutter
Shutter Speed Mechanical Shutter
1/8000 to 30 Seconds
Electronic Front Curtain Shutter
1/8000 to 30 Seconds
Electronic Shutter
1/8000 to 0.5 Seconds
ISO Sensitivity Photo
100 to 51,200 in Manual Mode (Extended: 50 to 102,400)
100 to 51,200 in Auto Mode
Video
100 to 25,600 (Extended: 51,200)
Metering Method Center-Weighted Average, Evaluative, Partial, Spot
Exposure Modes Aperture Priority, Manual, Program, Shutter Priority
Exposure Compensation -3 to +3 EV (1/3, 1/2 EV Steps)
Metering Range -3 to 20 EV
White Balance 2000 to 10,000K
Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
Continuous Shooting Mechanical Shutter
Up to 12 fps at 45 MP for up to 180 Frames (Raw) / 350 Frames (JPEG)
Electronic Shutter
Up to 20 fps at 45 MP for up to 83 Frames (Raw) / 170 Frames (JPEG)
Interval Recording Yes
Self-Timer 2/10-Second Delay

External Video Capture

External Recording Modes 4:2:2 10-Bit via HDMI
DCI 4K (4096 x 2160) up to 59.94p
UHD 4K (3840 x 2160) up to 59.94p
IP Streaming Yes

Internal Video Capture

Raw Recording Raw 12-Bit
8192 x 4320 at 23.98/24.00/25/29.97 fps [2600 Mb/s]
Recording Modes H.265 4:2:2 10-Bit
DCI 8K (8192 x 4320) at 23.98p/24.00p/25p/29.97p [680 to 1300 Mb/s]
UHD 8K (7680 x 4320) at 23.98p/25p/29.97p [680 to 1300 Mb/s]
DCI 4K (4096 x 2160) at 23.98p/24.00p/25p/29.97p/59.94p/100p/119.88p [170 to 1880 Mb/s]
UHD 4K (3840 x 2160) at 23.98p/25p/29.97p/50p/59.94p/100p/119.88p [170 to 1880 Mb/s]
Full HD (1920 x 1080) at 23.98p/25p/29.97p/50p/59.94p [28 to 230 Mb/s]
H.264 4:2:0 8-Bit
DCI 8K (8192 x 4320) at 23.98p/24.00p/25p/29.97p [470 to 1300 Mb/s]
UHD 8K (7680 x 4320) at 23.98p/25p/29.97p [470 to 1300 Mb/s]
DCI 4K (4096 x 2160) at 23.98p/24.00p/25p/29.97p/50p/59.94p/100p/119.88p [120 to 1880 Mb/s]
UHD 4K (3840 x 2160) at 23.98p/25p/29.97p/50p/59.94p/100p/119.88p [120 to 1880 Mb/s]
Full HD (1920 x 1080) at 23.98p/25p/29.97p/50p/59.94p [12 to 180 Mb/s]
Sensor Crop Modes Super35 / APS-C
4K
Gamma Curve Canon Log, Canon Log 3
Recording Limit Up to 29 Minutes, 59 Seconds
Video System NTSC/PAL
Built-In Microphone Type Stereo
Audio Recording AAC Audio
LPCM Audio

Still Image Capture

Image Sizes 3:2 JPEG / Raw
8192 x 5464
5808 x 3872
4176 x 2784
2976 x 1984
2400 x 1600
Aspect Ratio 1:1, 3:2, 4:3, 16:9
Image File Format JPEG, Raw
Bit Depth 14-Bit

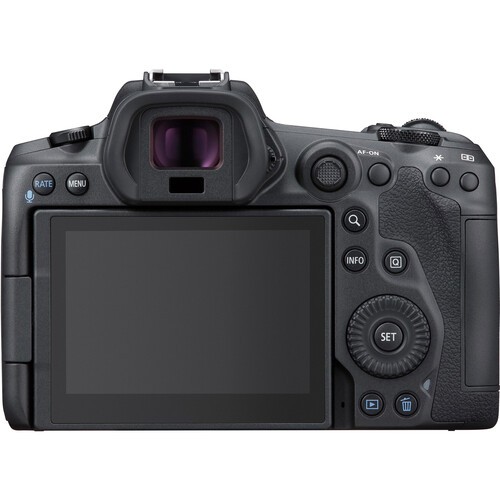

Monitor

Size 3.2"
Resolution 2,100,000 Dot
Display Type Free-Angle Tilting Touchscreen LCD
Secondary Display Top: Status Display

Interface

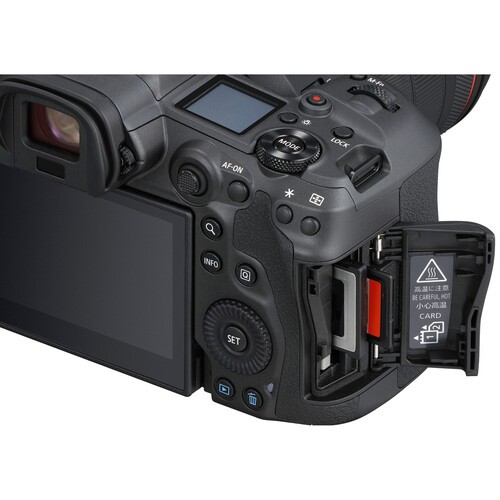

Media/Memory Card Slot Slot 1: CFexpress Type B
Slot 2: SD/SDHC/SDXC (UHS-II)
Video I/O 1 x Micro-HDMI Output
Audio I/O 1 x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body
1 x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body
Other I/O 1 x USB Type-C (USB 3.2 / 3.1 Gen 2) Input/Output (Shared with Power Input)
1 x Canon N3 Control Input
Power I/O 1 x USB Type-C (5 VDC at 1.5 A) Input
Wireless 5 GHz Wi-Fi 5 (802.11ac), Bluetooth Control
Global Positioning (GPS, GLONASS, etc.) None

Viewfinder

Type Built-In Electronic (OLED)
Size 0.5"
Resolution 5,760,000 Dot
Eye Point 23 mm
Coverage 100%
Magnification Approx. 0.76x
Diopter Adjustment -4 to +2

Focus

Focus Type Auto and Manual Focus
Focus Mode Continuous-Servo AF, Manual Focus, Single-Servo AF
Autofocus Points Phase Detection: 1053
Autofocus Sensitivity -6 to +20 EV

Flash

Built-In Flash No
Maximum Sync Speed 1/250 Second
Flash Compensation -3 to +3 EV (1/3, 1/2 EV Steps)
Dedicated Flash System eTTL
External Flash Connection Hot Shoe

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 0 to 85%

General

Battery Type 1 x LP-E6NH Rechargeable Lithium-Ion
Tripod Mounting Thread 1 x 1/4"-20 Female (Bottom)
Accessory Mount 1 x Hot Shoe Mount

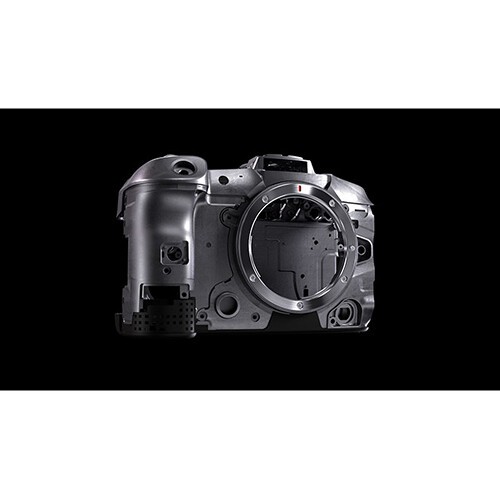

Material of Construction Magnesium Alloy
Dimensions (W x H x D) 5.43 x 3.84 x 3.46" / 138 x 97.5 x 88 mm
Weight 1.62 lb / 738 g (With Battery, Recording Media)

Packaging Info

Package Weight 3.1 lb
Box Dimensions (LxWxH) 11.1 x 9 x 6"
