Canon EOS 5D Mark IV DSLR Camera (Body Only)

#63713924D  PC #CAE5D4
Discontinued
Key Features
  • 30.4MP Full-Frame CMOS Sensor
  • DIGIC 6+ Image Processor

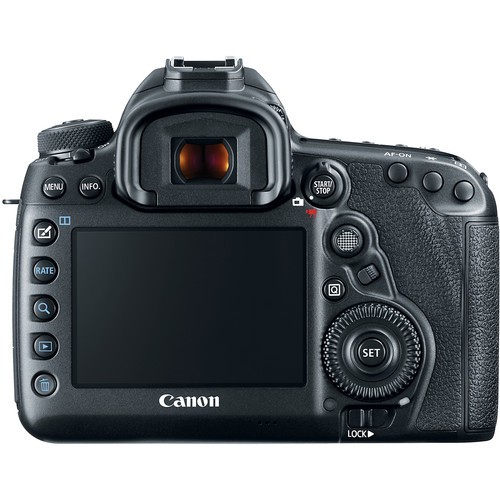

  • 3.2" 1.62m-Dot Touchscreen LCD Monitor
  • DCI 4K Video at 30 fps; 8.8MP Still Grab
  • 61-Point High Density Reticular AF
  • Native ISO 32000, Expanded to ISO 102400
  • Dual Pixel RAW; AF Area Select Button
  • Dual Pixel CMOS AF and Movie Servo AF
  • 7 fps Shooting; CF & SD Card Slots
  • Built-In GPS and Wi-Fi with NFC
Color
Style

Specifications

Imaging

Lens Mount Canon EF
Sensor Resolution Actual: 31.7 Megapixel
Effective: 30.4 Megapixel (6720 x 4480)
Sensor Type 36 x 24 mm (Full-Frame) CMOS
Image Stabilization None
Mirror Lock-Up Yes
Capture Type Stills & Video

Exposure Control

Shutter Type Electronic Shutter, Mechanical Focal Plane Shutter
Shutter Speed Electronic Front Curtain Shutter
1/8000 to 30 Seconds
Bulb/Time Mode Bulb Mode
ISO Sensitivity Photo
100 to 32,000 in Auto Mode (Extended: 50 to 102,400)
Video
100 to 32,000 in Auto Mode
Metering Method Evaluative, Partial, Spot
Exposure Modes Aperture Priority, Auto, Manual, Shutter Priority
Exposure Compensation -5 to +5 EV (1/3 EV Steps)
Metering Range 0 to 20 EV
White Balance Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
Continuous Shooting Up to 7 fps at 30 MP for up to 21 Frames (Raw) / Unlimited Frames (JPEG)
Interval Recording Yes
Self-Timer 2/10-Second Delay

Still Image Capture

Image Sizes 3:2 Raw
5040 x 3360
4:3 Raw
4480 x 3360
16:9 Raw
5040 x 2836
1:1 Raw
3360 x 3360
3:2 JPEG
6720 x 4480
3360 x 2240
1920 x 1280
720 x 480
4:3 JPEG
5952 x 4480
3968 x 2976
2976 x 2240
1696 x 1280
640 x 480
16:9 JPEG
6720 x 3776
4464 x 2512
3360 x 1888
1920 x 1080
720 x 408
1:1 JPEG
4480 x 4480
2976 x 2976
2240 x 2240
1280 x 1280
480 x 480
Aspect Ratio 1:1, 3:2, 4:3, 16:9
Image File Format JPEG, Raw
Bit Depth 14-Bit

Interface

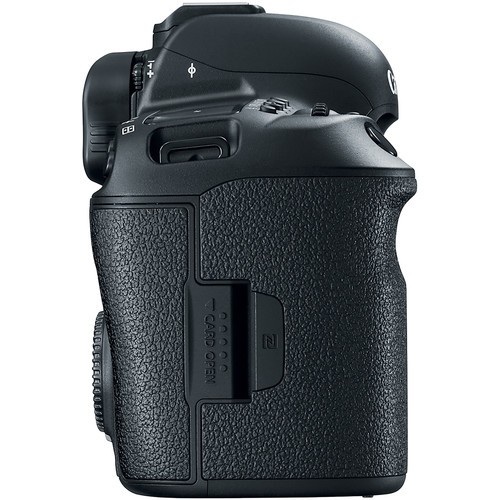

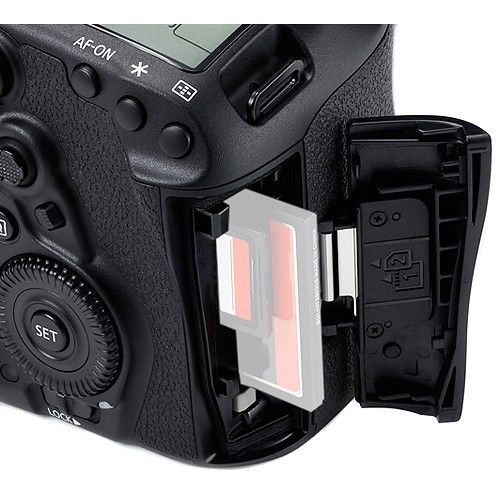

Media/Memory Card Slot Slot 1: SD/SDHC/SDXC (UHS-I)
Slot 2: CompactFlash (UDMA 7)

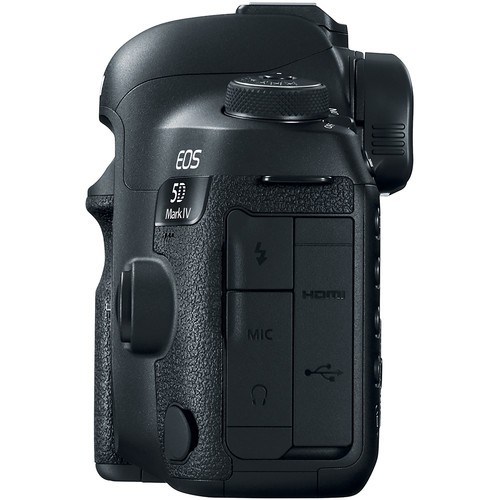

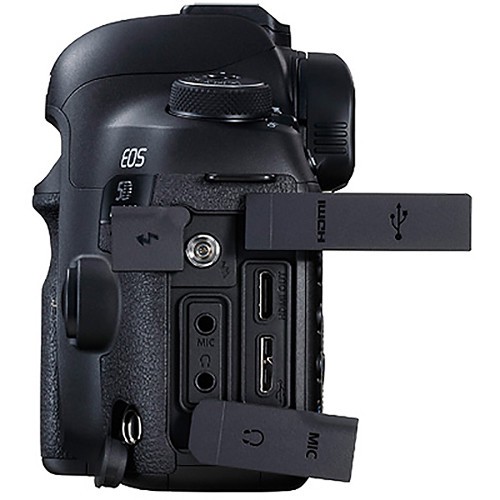

Video I/O 1 x Mini-HDMI Output
Audio I/O 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output
1 x 1/8" / 3.5 mm TRS Stereo Microphone Input
Other I/O 1 x Canon N3 Control Input
1 x USB Micro-B (USB 3.2 / 3.1 Gen 1) Data Output
1 x PC Sync Socket Input
Power I/O None
Wireless Wi-Fi
Global Positioning (GPS, GLONASS, etc.) GPS, GLONASS, Galileo, QZSS

Internal Video Capture

Recording Modes M-JPEG 4:2:2 8-Bit
DCI 4K (4096 x 2160) at 23.98p/24.00p/29.97p [500 Mb/s]
MOV
Full HD (1920 x 1080) at 59.94p [180 Mb/s]
Full HD (1920 x 1080) at 23.98p/24.00p/29.97p [90 Mb/s]
Full HD (1920 x 1080) at 59.94p [60 Mb/s]
Full HD (1920 x 1080) at 23.98p/24.00p/29.97p [30 Mb/s]
HD (1280 x 720) at 119.88p [160 Mb/s]
MP4
Full HD (1920 x 1080) at 59.94p [60 Mb/s]
Full HD (1920 x 1080) at 23.98p/24.00p/29.97p [30 Mb/s]
Full HD (1920 x 1080) at 29.97p [12 Mb/s]
Recording Limit Up to 29 Minutes, 59 Seconds for DCI 4K (4096 x 2160)
Video System NTSC/PAL
Built-In Microphone Type Mono
Audio Recording MP4: AAC Audio
MOV: LPCM Audio

External Video Capture

External Recording Modes HDMI
Full HD (1920 x 1080) at 59.94p
Full HD (1920 x 1080) at 23.98p/24.00p/29.97p
Full HD (1920 x 1080) at 29.97p
HD (1280 x 720) at 119.88p
IP Streaming None

Monitor

Size 3.2"
Resolution 1,620,000 Dot
Display Type Fixed Touchscreen LCD

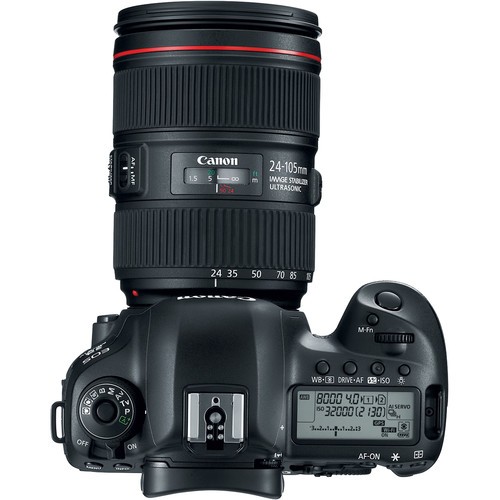

Secondary Display Top: Status Display

Viewfinder

Type Optical (Pentaprism)
Eye Point 21 mm
Coverage 100%
Magnification Approx. 0.71x
Diopter Adjustment -3 to +1

Focus

Focus Type Auto and Manual Focus
Focus Mode Continuous-Servo AF, Manual Focus, Single-Servo AF
Autofocus Points Phase Detection: 61 (41 Cross-Type)
Autofocus Sensitivity -3 to +18 EV

Flash

Built-In Flash No
Maximum Sync Speed 1/200 Second
Flash Compensation -3 to +3 EV (1/3, 1/2 EV Steps)
Dedicated Flash System eTTL
External Flash Connection Hot Shoe, PC Terminal

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 0 to 85%

General

Battery Type 1 x LP-E6N Rechargeable Lithium-Ion, 7.2 VDC, 1865 mAh
Accessory Mount 1 x Hot Shoe Mount
Material of Construction Magnesium Alloy
Dimensions (W x H x D) 5.9 x 4.6 x 3" / 150.7 x 116.4 x 75.9 mm
Weight 1.76 lb / 800 g (Body Only)

Packaging Info

Package Weight 3.4 lb
Box Dimensions (LxWxH) 9.8 x 7.35 x 5.85"
