BOYA BOYALINK 3 AI-Powered 2-Person Wireless Microphone System for Cameras and Mobile Devices (2.4 GHz)

#F01114047  PC #BOYALINK 3-02
In Stock
Key Features
  • For Content Creation, Vlogging
  • 2-Person Shoots with Camera or Phone
  • 2 x Ultracompact Transmitters with Mics
  • Dual-Channel Receiver, USB-C Adapter
  • 984.3' Line-of-Sight Transmission
  • Built-In AI Chip, Noise Cancellation
  • -12 dB Backup Recording
  • EQ Tuning, App Control

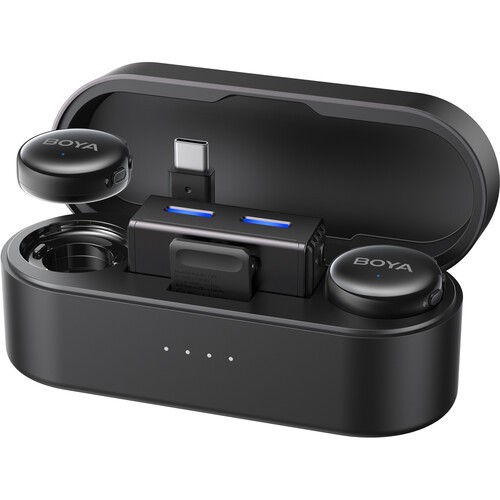

  • Built-In Batteries, Charging Case
MMK 400,000.00
Color
Connector

Specifications

BOYA BOYALINK 3 Specs

Information Wireless Technology
Digital 2.4 GHz
Diversity
Non-Diversity
Max Operating Range
984.3' / 300 m (Line of Sight)
Receiver Type
1x Camera-Mount
Number of Audio Channels
2
Included Transmitters
2x Clip-On with Microphone
Microphone Type
2x Built-In (Clip-On Transmit

System

Information Wireless Technology
Digital 2.4 GHz
Diversity
Non-Diversity
RF Frequency Band
2400 MHz
Max Operating Range
984.3' / 300 m (Line of Sight)
Max Transmitters per Band
2
Built-In Recorder
No
Timecode Support
No
Mobile App Compatible
Yes: Android & iOS
App Name: BOYA Central App

Microphones

Information Microphone Type
2x Built-In (Clip-On Transmitter)
Polar Pattern
Omnidirectional
Frequency Response
20 Hz to 20 kHz
Maximum SPL
115 dB
Sensitivity
-32 dB
Color
Black
Power
Receiver Battery Type
1x Built-In Rechargeable - 240 mAh
Receiver Battery Life
14 Hours
Transmitter Battery Type
1x Built-In Rechargeable - 130 mAh
Transmitter Battery Life
6 Hours
Battery Charging Time
1.5 Hours

Charging Case

Information Battery
1500 mAh Rechargeable
Recharge Time
2 Hours
Charging Input
USB-C
Input Power
5 VDC at 2 A

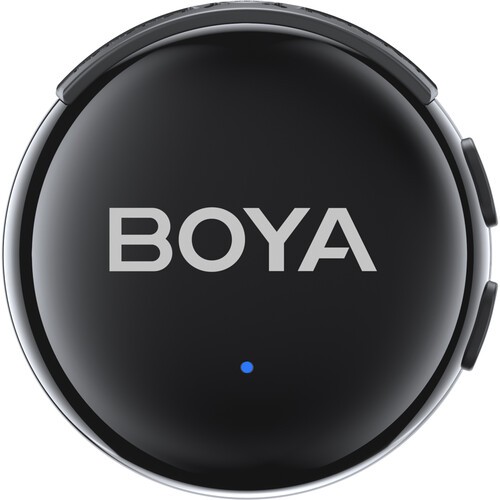

Transmitters

Information Included Transmitters
2x Clip-On with Microphone
RF Output Power
< 10 mW
Antenna
Internal PIFA
Input Level
Microphone
Audio I/O
No
Bias/Plug-In & Phantom Power
No Bias/Plug-In Power
No Phantom Support
USB I/O
No
Muting
Mute Switch
Gain Range
-12 -40 dB
Auto-Level/Gain
Yes
Frequency Response
20 Hz to 20 kHz
Sync Method
2.4 GHz QPSK
Display
No

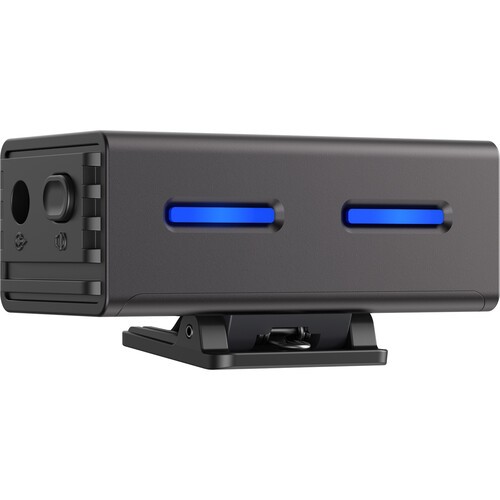

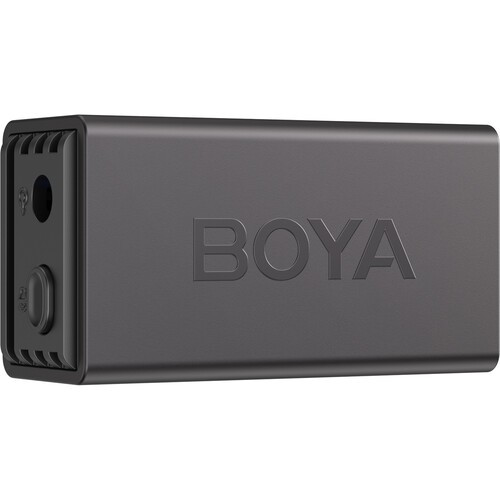

Receiver

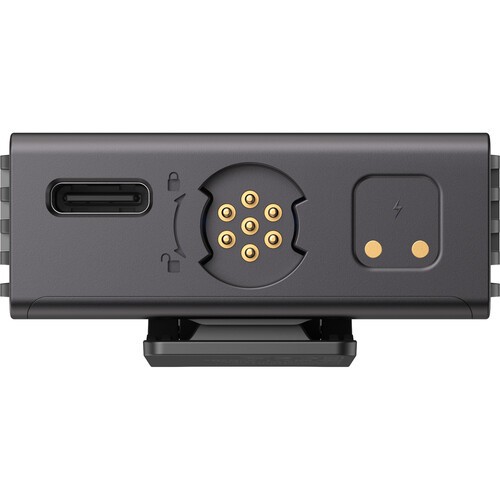

Information Receiver Type
1x Camera-Mount
Mounting Options
Shoe-Mount (with Included Hardware)

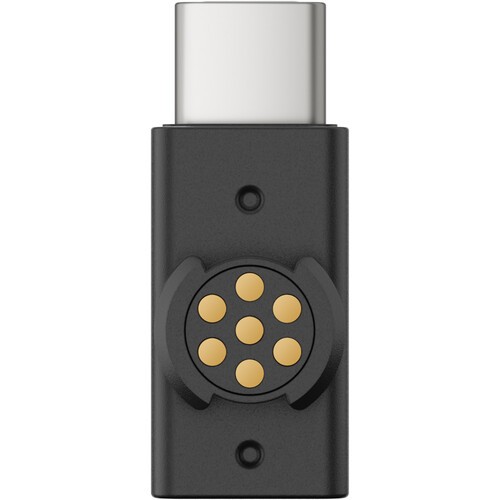

USB-C Plug-In (with Included Adapter)
Antenna
1x Internal PIFA
Number of Audio Channels
2
Audio I/O

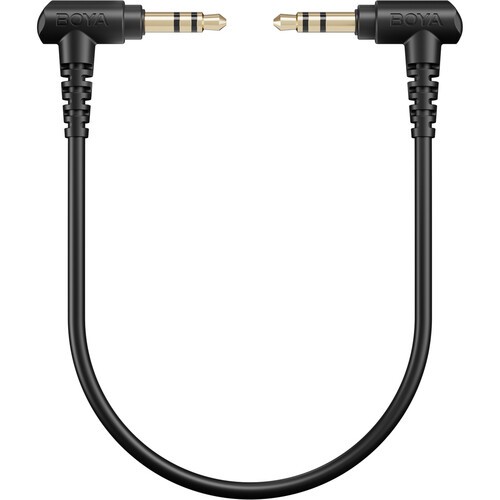

1x 1/8" / 3.5 mm TRS Unbalanced Output
USB/Lightning Connectivity
1x USB-C Female (Audio)
1x USB-C Male (Audio)
Gain Range
-21 to -40 dB
Frequency Response
20 Hz to 20 kHz
Display
Single-LED Indicators Only
Power Requirements
Battery

Packaging Info

Information Package Weight
0.59 lb
Box Dimensions (LxWxH)
6.1 x 3.3 x 3"

Physical

Information Environmental Resistance
No
Dimensions

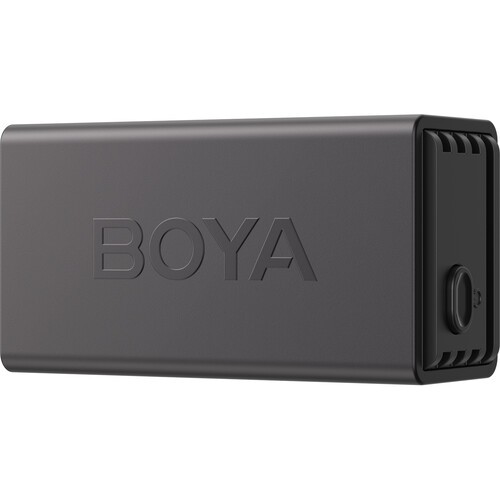

Case:
4.3 x 1.7 x 1.7" / 108 x 42 x 42 mm
Receiver:
1.7 x 0.9 x 0.8" / 44.2 x 22 x 20.8 mm

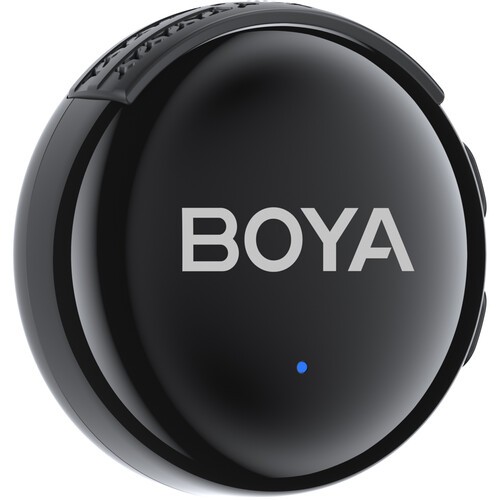

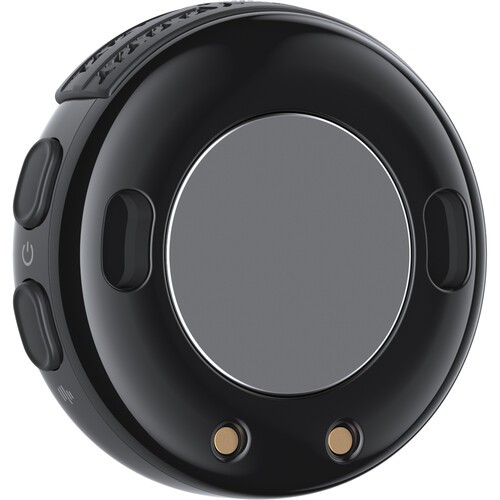

Transmitter:
1 x 0.4" / 26.1 x 10 mm (without Mount)
Weight
Case:
3.8 oz / 108.5 g
Receiver:
0.6 oz / 16.5 g
Transmitter:
0.3 oz / 9 g
