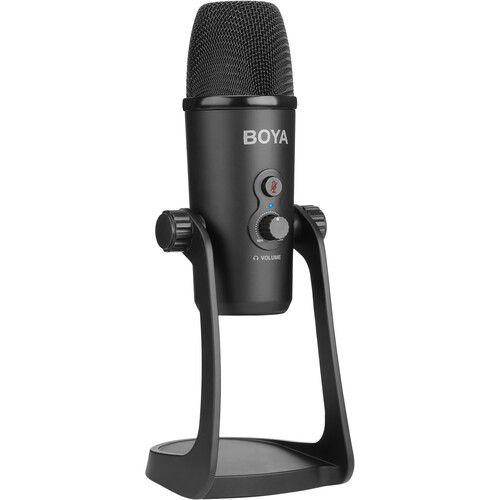

BOYA BY-PM700 Multipattern USB Microphone (Mac/Windows)

#036074I91  PC #BOBYPM700
In Stock
Key Features
  • 24-Bit / 48 kHz Resolution
  • Four Selectable Polar Patterns
  • 3.5mm Headphone Monitoring Jack
  • Dedicated Mic Mute Button
  • Adjustable Gain and Headphone Volume
  • Integrated Desktop Stand and 5/8" Thread
  • Solid Metal Construction

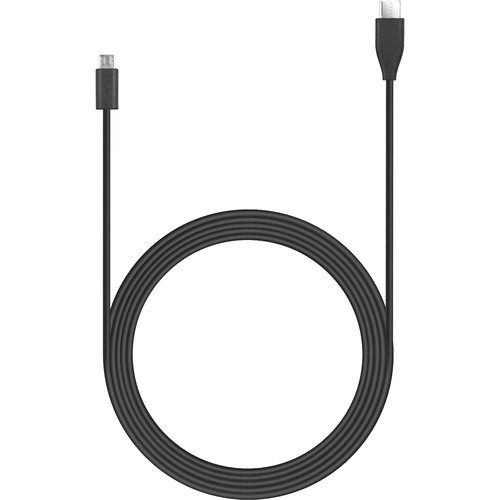

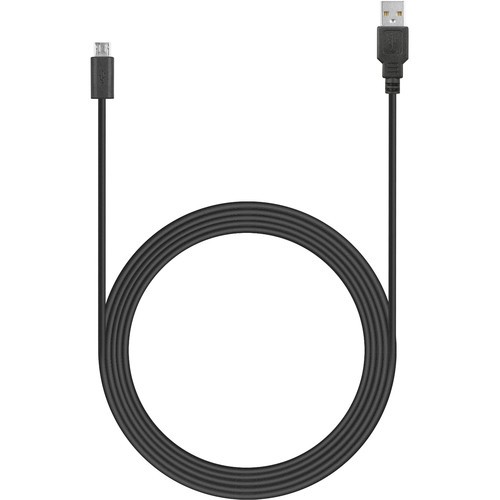

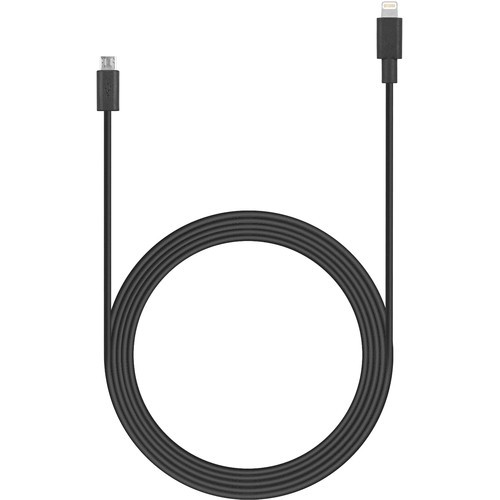

  • Includes Lightning and USB Cables
  • Mac, Windows, iOS & Android Compatible
MMK 285,000.00
Color

Specifications

Microphone

Primary Applications Studio Recording, Podcast, Conferencing
Form Factor Desktop / Stand/Boom Mount
Intended Sound Sources Vocals, Speech/Voice Over, Instrument
Sound Field Mono, Stereo
Stereo/Surround Configuration A/B
Operating Principle Pressure Gradient
Pressure Operated
Capsule 3 x Electret Condenser
Diaphragm 0.55" / 14 mm
Polar Pattern Cardioid, Figure-8, Omnidirectional
Pattern Selection Switched (Adjustable on Mic)
Orientation Side Address
Circuitry Solid-State
Pad None
High-Pass Filter None
Tone Adjustment None
Indicators 1 x Single LED (Power)
1 x Single LED (Status)
On-Board Controls Gain/Sensitivity, Headphone Volume, Mic Mute, Polar Pattern
Windscreen Built-In

Performance

Frequency Range 20 Hz to 20 kHz
Sensitivity -45 dBV/Pa at 1 kHz
Signal-to-Noise Ratio 80 dB

Connectivity

Output Connectors (Digital) 1 x Micro-USB Female (on Mic)
Headphone Connector 1 x 1/8" / 3.5 mm
Cable Length 3.3' / 1.01 m
Wireless Connectivity None
Bluetooth None

Digital Audio

A/D Conversion 24-Bit
Sample Rate 48 kHz
OS Compatibility Android
Windows
iOS
macOS
*As of January, 2020: Check with manufacturer for the most up-to-date compatibility

Power

Bus Power USB / Lightning
Operating Voltage 5 V
Operating Current Consumption 150 mA

Physical

Color Silver
Mounting Tabletop (via Integrated Hardware)
Mounting Thread Size 5/8"-27 Female
Included Case None
Included Filters None
Construction Material Metal
Dimensions H: 11.61 x W: 4.41 x L: 4.25" / H: 29.5 x W: 11.2 x L: 10.8 cm (with Mount)
Weight 2.29 lb / 1.04 kg

Packaging Info

Package Weight 3 lb
Box Dimensions (LxWxH) 10 x 6 x 6"
